180 Degree Hybrid Couplers

  Part Number Frequency NominalSplit Loss Amplitude Balance Phase Bal Isol VSWR Power Download THC0409B 0.45-0.9GHz 3.01dB 0.4dB ±0.50dB ±5° 22dB 1.25:1 50W do ...
Product Details


Part Number

Frequency NominalSplit Loss Amplitude Balance Phase Bal Isol VSWR Power Download
THC0409B 0.45-0.9GHz 3.01dB 0.4dB ±0.50dB ±5° 22dB 1.25:1 50W download
THC0510B 0.5-1GHz 3.01dB 0.4dB ±0.50dB ±5° 22dB 1.25:1 50W download
THC1214B 1.2-1.4GHz 3.01dB 0.3dB ±0.30dB ±3° 22dB 1.20:1 50W download
THC0715B 0.75-1.5GHz 3.01dB 0.4dB ±0.50dB ±5° 22dB 1.25:1 50W download

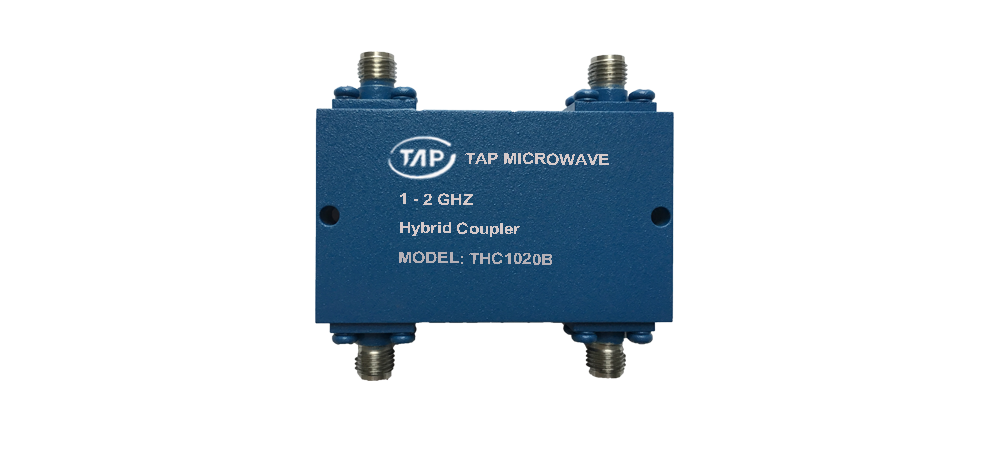

THC1020B 1-2 GHz 3.01dB 0.5dB ±0.50dB ±5° 20dB 1.25:1 50W download
THC1214B 1.2-1.4GHz 3.01dB 0.3dB ±0.20dB ±2° 24dB 1.20:1 50W download
THC1720B 1.7-2.0 GHz 3.01dB 0.3dB ±0.30dB ±3° 22dB 1.25:1 50W download
THC2040B 2-4GHz 3.01dB 0.5dB ±0.50dB ±5° 22dB 1.25:1 50W download
THC20180B 2-18GHz 3.01dB 2.5dB ±0.80dB ±10° 20dB 1.50:1 50W download
THC2124B 2.1-2.4GHz 3.01dB 0.3dB ±0.30dB ±3° 22dB 1.25:1 50W download
THC2224B 2.2-2.4GHz 3.01dB 0.35dB ±0.30dB ±3° 22dB 1.25:1 50W download
THC4080B 4-8GHz 3.01dB 0.6dB ±0.50dB ±5° 18dB 1.30:1 50W download
THC4452B 4.4-5.2GHz 3.01dB 0.5dB ±0.30dB ±3° 22dB 1.25:1 50W download
