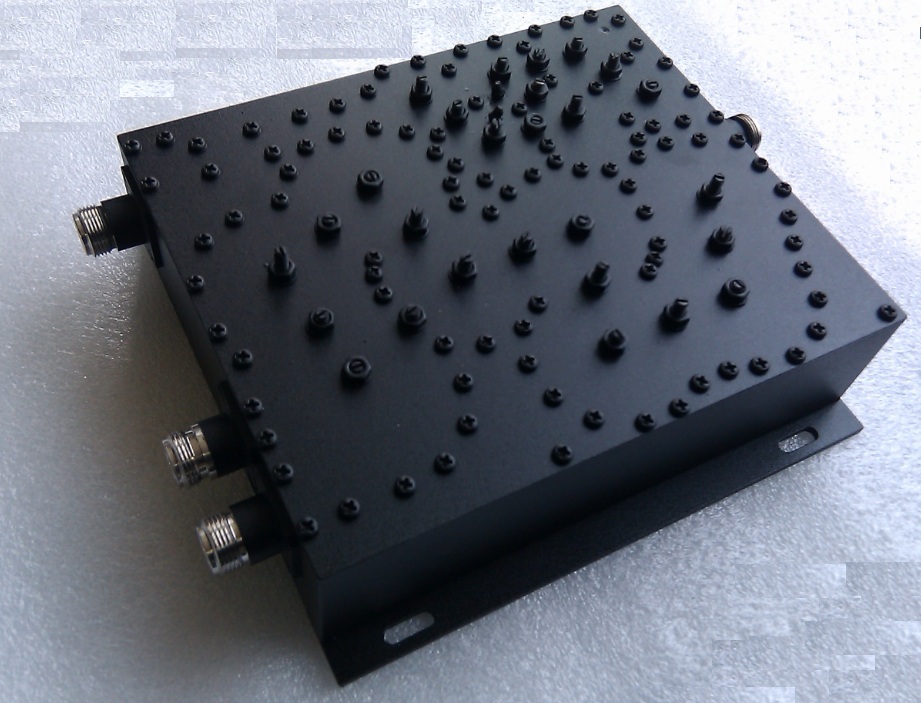

Dettagli del prodotto
Features
Low Insertion Loss,VSWR basso
High reliability,Type N connector models available
Electrical specifications
|
Parameters |
CDMA |
GSM |
|
Intervallo di frequenze |
825～835MHz |
935～960MHz |
|
Perdita di inserzione |
≤2.0dB |
≤1,0 dB |
|
Ripple in Band |
≤1,0 dB |
≤0,5 dB |
|
VSWR |
≤1.30:1 |
≤1.30:1 |
|
Accoppiamento |
—— |
30dB±2dB |
|
Rejection |
≥80dB@935～960MHz |
≥80dB@825～835MHz |
|
Power |
CW ≤50Watt; Peak Instantaneous ≤500Watt |
|
|
Ports Impedance |
50OH |
|
|
Connectors |
N-Femmina |
|
|
Surface Color |
Black |
|
|
Wight |
1300G |
|
Environmental Parameters
Operating Temperature -25～+65℃
Operating Humidity Up to 90%,Non- Condensazione
