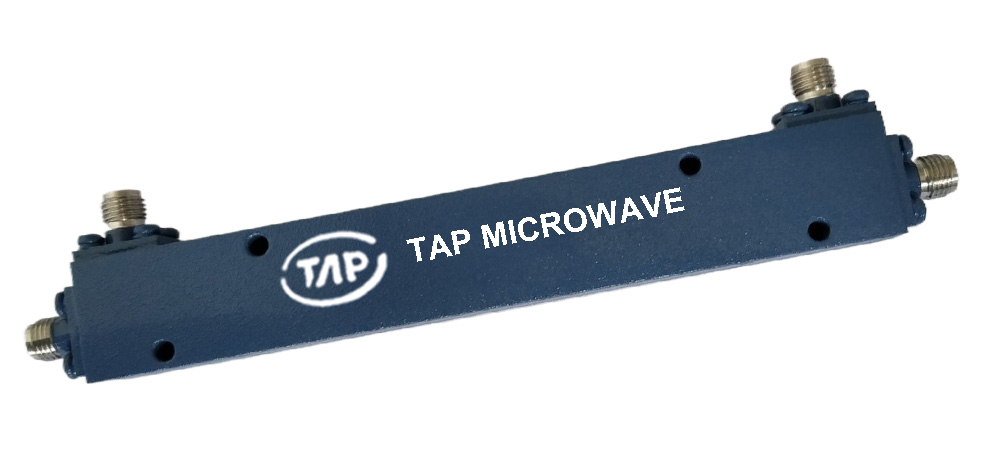

TDC05180A20B 0.5-18GHz 20dB bi-directional coupler

 Technical Data Sheet  Frequency Range  0.5~18GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤1.2dB (Excl. Coupling  Loss 0.04dB)    Connect ...
Product Details

 Technical Data Sheet

 Frequency Range

 0.5~18GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤1.2dB (Excl. Coupling

 Loss 0.04dB)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤20±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±1.0dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥12dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.45:1

 Secondary ≤1.45:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Incident ≤50Watt;

 Reflected ≤50Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 65g

 Port Connectors

 SMA-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
