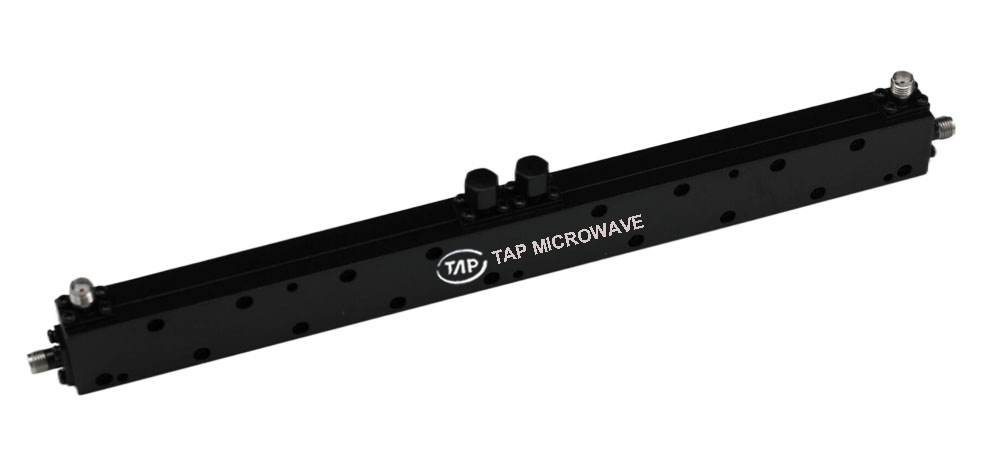

Product Details
![](https://www.tapmicrowave.com/wp-content/uploads/2024/07/TDC07180A20D-0.7-18GHz-20dB-dual-directional-coupler.jpg)
Technical Data Sheet |
||||
Frequency Range |
0.7~18GHz |
|
Finish |
Painted Blue_ RAL #5007 |
Insertion Loss |
≤2.1dB (Excl. Coupling Loss 0.08dB) |
|
Connector Body |
Passivated Stainless Steel |
Coupling Factor |
≤20±1.0dB |
|
Housing |
Aluminum, 6061 T6 Clear Chem Conversion Film |
Coupling Sensitivity |
≤±1.0dB |
|
Connector Pin |
Beryllium Copper, Gold Plate |
Directivity |
≥12dB |
|
Solder |
Lead Free, RoHS Compliant |
VSWR |
Primary ≤1.40:1 Secondary ≤1.40:1 |
|
Operating Temperature |
-55~+85℃ |
1Power Handling |
Incident ≤20Watt; Reflected ≤2Watt |
|
Operating Humidity |
Up to 95%,Non- Condensing |
Impedance |
50Ω |
|
Weight |
200g |
Port Connectors |
SMA-Female |
|
|
|
1Power Handling guaranteed when load’s VSWR within 1.50:1.
