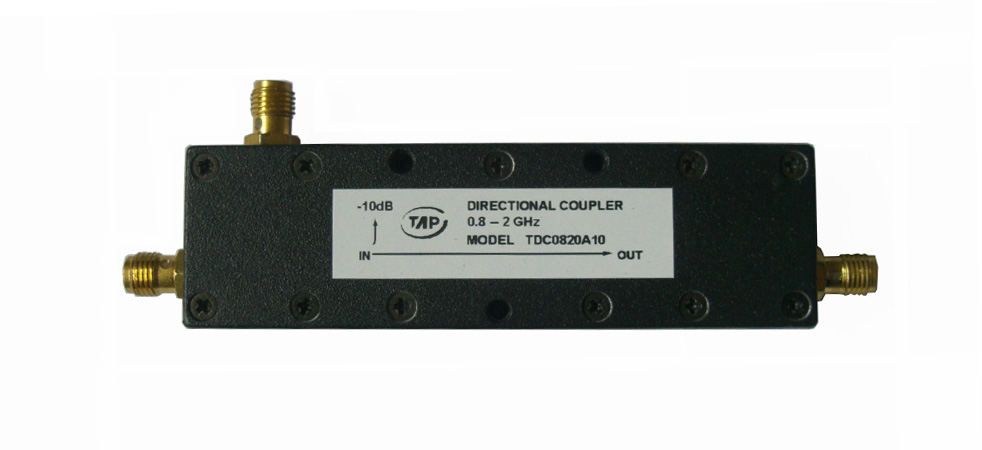

TDC0820A10 0.8-2GHz 10dB Directional Coupler

   Technical Data Sheet  Frequency Range  0.8~2GHz    Finish  Painted Blue_ RAL #Black  Insertion Loss  ≤0.6dB (Excl. Coupling   Loss 0.46dB)    Connector Body  Passiva ...
Product Details



 Technical Data Sheet
 Frequency Range  0.8~2GHz    Finish  Painted Blue_ RAL #Black
 Insertion Loss  ≤0.6dB (Excl. Coupling



Loss 0.46dB)

   Connector Body  Passivated Stainless Steel
 Coupling Factor  ≤10±0.9dB    Housing  Aluminum, 6061 T6



Clear Chem Conversion Film

 Coupling Sensitivity  ≤±0.7dB    Connector Pin  Beryllium Copper, Gold Plate
 Directivity  ≥20dB    Solder  Lead Free, RoHS Compliant
 VSWR  Primary ≤1.30:1



Secondary ≤1.30:1

   Operating Temperature  -25~+65℃
 1Power Handling  Incident ≤10Watt;



Reflected ≤1Watt

   Operating Humidity  Up to 90%,Non- Condensing
 Impedance  50Ω    Weight
 Port Connectors  SMA-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1.
