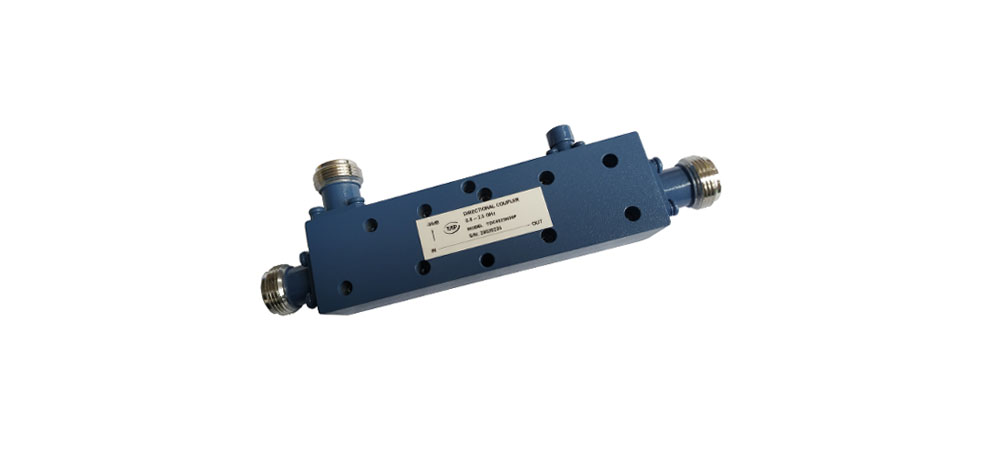

TDC0825N30P 0.8-2.5GHz 30dB Directional Coupler

 Technical Data Sheet  Frequency Range  0.8~2.5GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.4dB (Excl. Coupling  Loss 0.01dB)    Connec ...
Product Details

 Technical Data Sheet

 Frequency Range

 0.8~2.5GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.4dB (Excl. Coupling

 Loss 0.01dB)



 Connector Body

 Brass, Tri-Alloy Plate

 Coupling Factor

 ≤30dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±0.7dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥20dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.20:1

 Secondary ≤1.20:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Incident ≤60Watt;

 Reflected ≤50Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 230g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
