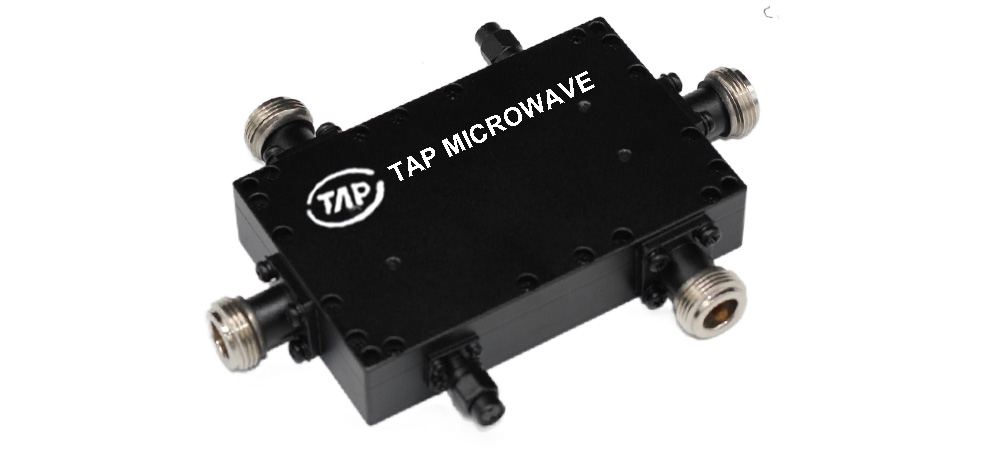

TDC1020H40D 1-2GHz 40dB high power dual coupler

 Technical Data Sheet  Frequency Range  1~2GHz    Finish Painted Blue_ RAL #5007  Insertion Loss  ≤0.25dB (Excl. Coupling  Loss 0.01dB)    Connector ...
Product Details

 Technical Data Sheet

 Frequency Range

 1~2GHz



 Finish

Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.25dB (Excl. Coupling

 Loss 0.01dB)



 Connector Body

 Brass, Tri-Alloy Plate

 Coupling Factor

 ≤40±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±1.0dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥18dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.30:1

 Secondary ≤1.30:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Incident ≤200Watt;

 Reflected ≤200Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 110g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
