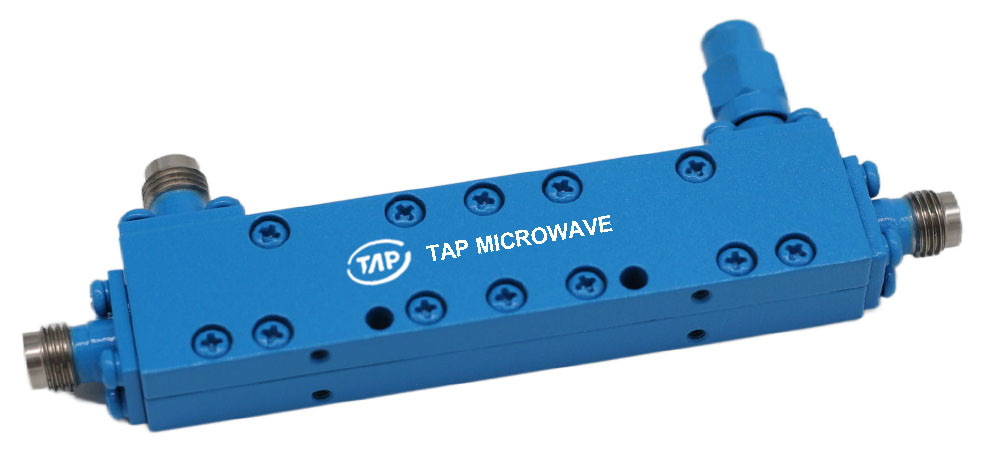

TDC10265A10 1-26.5GHz 10dB Directional Coupler

 Technical Data Sheet  Frequency Range  1~26.5GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤1.4dB (Excl. Coupling  Loss 0.46dB)    Connect ...
Product Details

 Technical Data Sheet

 Frequency Range

 1~26.5GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤1.4dB (Excl. Coupling

 Loss 0.46dB)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤10±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±1.0dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥12dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.50:1

 Secondary ≤1.50:1



 Operating Temperature

 -55~+85℃

 1Power Handling

Incident ≤20Watt;

 Reflected ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 60g

 Port Connectors

 2.92mm-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
