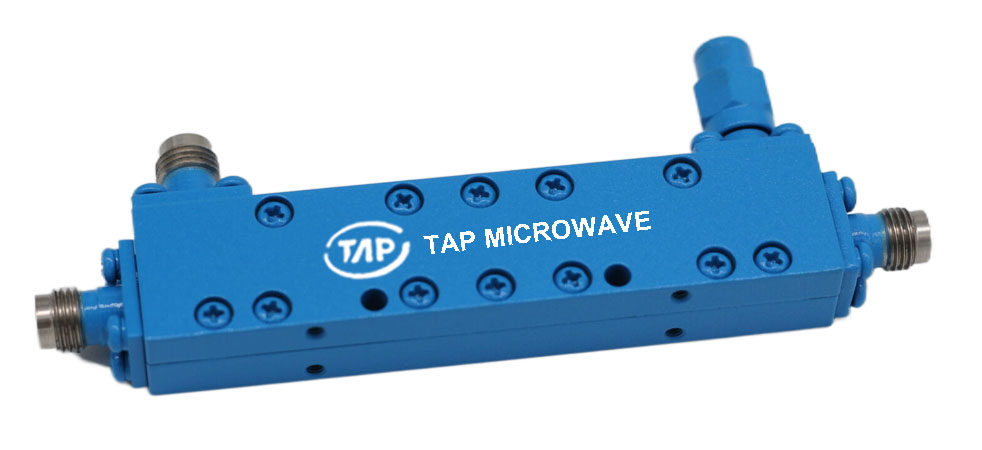

TDC10400A20 1-40GHz 20dB Directional Coupler

 Technical Data Sheet  Frequency Range  1~40GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤2.0dB (Excl. ...
Product Details

 Technical Data Sheet

 Frequency Range

 1~40GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤2.0dB (Excl. Coupling

 Loss 0.04dB)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤20±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±1.2dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥10dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.70:1

 Secondary ≤1.70:1



 Operating Temperature

 -55~+85℃

 1Power Handling

Incident ≤20Watt;

 Reflected ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 60g

 Port Connectors

 2.92mm-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
