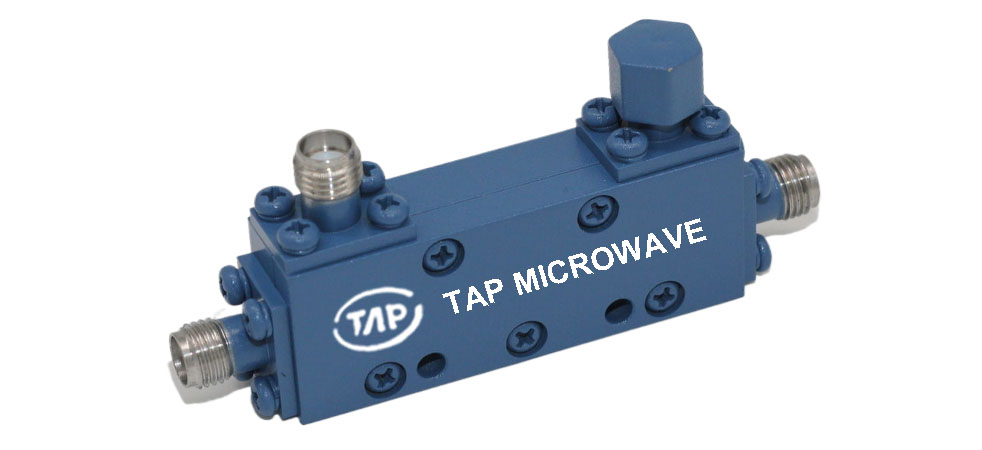

TDC20100A6A 2-10GHz 6dB Direction Coupler

 Technical Data Sheet  Frequency Range  2~10GHz    Finish  Natural oxygen  Insertion Loss  ≤1.2dB ...
Product Details
 Technical Data Sheet
 Frequency Range  2~10GHz    Finish  Natural oxygen
 Insertion Loss  ≤1.2dB (Excl. Coupling  Loss 1.26dB)    Connector Body  Passivated Stainless Steel
 Coupling Factor  ≤6±0.7dB    Housing  Aluminum, 6061 T6  Clear Chem Conversion Film
 Coupling Sensitivity  ≤±0.7dB    Connector Pin  Beryllium Copper, Gold Plate
 Directivity  ≥15dB    Solder  Lead Free, RoHS Compliant
 VSWR  Primary ≤1.50:1  Secondary ≤1.50:1    Operating Temperature   -55~+85℃
 1Power Handling  Incident ≤50Watt;  Reflected ≤2Watt      Operating Humidity   Up to 95%,Non- Condensing
 Impedance  50Ω    Weight  40g
 Port Connectors  SMA-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1
