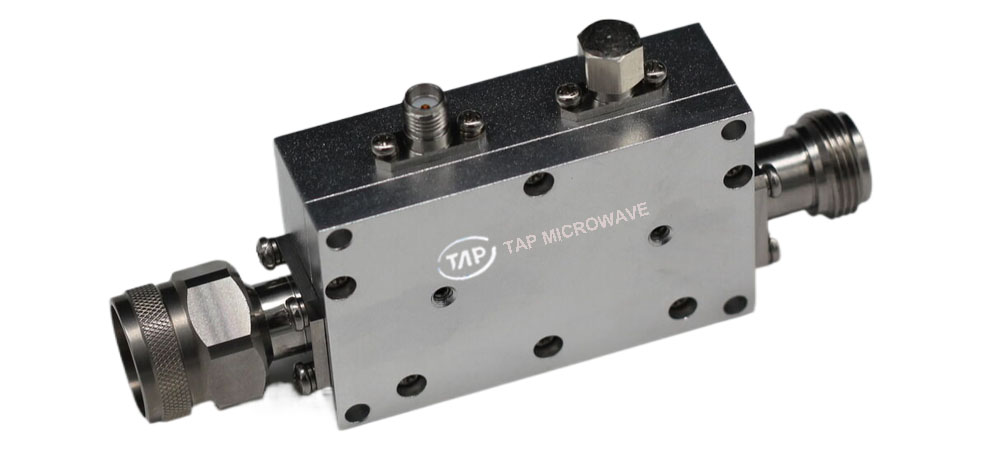

TDC2933H20MA 2.9-3.3GHz 20dB high power coupler

 Technical Data Sheet

 Frequency Range

 2.9~3.3GHz

 Finish

Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.3dB (Excl. Coupling

 Loss 0.04dB)

 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤20±1.0dB

 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±0.8dB

 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥18dB

 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤1.24:1

 Secondary ≤1.24:1

 Operating Temperature

 -55～+85℃

 ¹Power Handling

 Incident ≤400Watt;

 Reflected ≤30Watt

 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω

 Weight

 180g

 Port Connectors

 Input: N-Male

 Output: N-Female

 Coupled: SMA-Female
