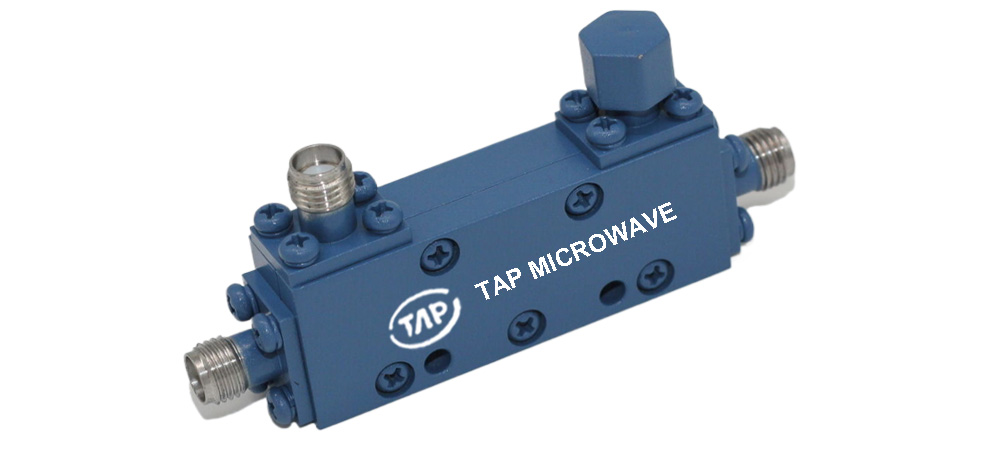

TDC40180A20A 4-18GHz 20dB directional coupler

 Technical Data Sheet  Frequency Range  4~18GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss &n ...
Product Details
 Technical Data Sheet
 Frequency Range  4~18GHz    Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤0.7dB (Excl. Coupling  Loss 0.04dB)    Connector Body  Passivated Stainless Steel
 Coupling Factor  ≤20±0.7dB    Housing  Aluminum, 6061 T6  Clear Chem Conversion Film
 Coupling Sensitivity  ≤±0.7dB    Connector Pin  Beryllium Copper, Gold Plate
 Directivity  ≥12dB    Solder  Lead Free, RoHS Compliant
 VSWR  Primary ≤1.40:1  Secondary ≤1.40:1    Operating Temperature   -55~+85℃
 1Power Handling  Incident ≤50Watt;  Reflected ≤2Watt      Operating Humidity   Up to 95%,Non- Condensing
 Impedance  50Ω    Weight  20g
 Port Connectors  SMA-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1
