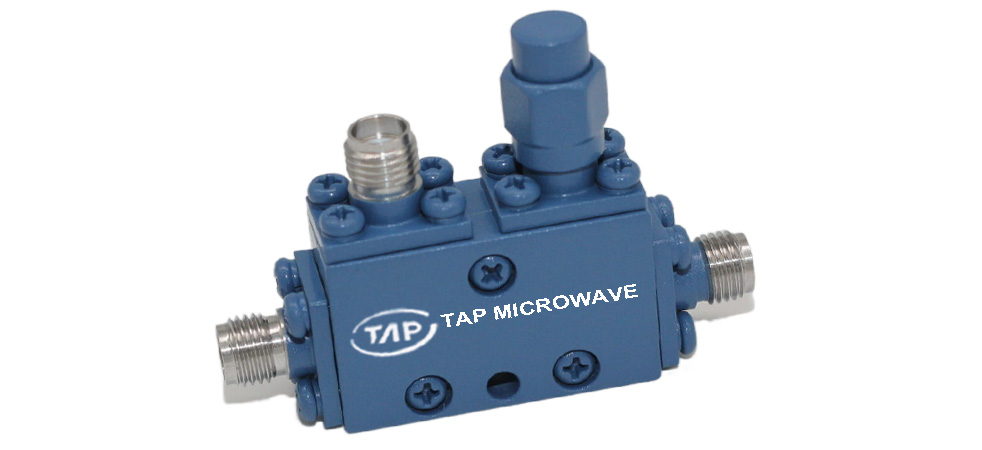

TDC40670A10 4-67GHz 10dB directional coupler

 Technical Data Sheet  Frequency Range  4~67GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤2.3dB (Excl. Coupling  Loss 0.46dB)    Connector ...
Product Details

 Technical Data Sheet

 Frequency Range

 4~67GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤2.3dB (Excl. Coupling

 Loss 0.46dB)



 Connector Body

 Passivated Stainless Steel

 Coupling Factor

 ≤10±1.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Coupling Sensitivity

 ≤±1.0dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Directivity

 ≥6dB



 Solder

 Lead Free, RoHS Compliant

 VSWR

 Primary ≤2.20:1

 Secondary ≤2.20:1



 Operating Temperature

 -10~+65℃

 1Power Handling

 Incident ≤5Watt;

 Reflected ≤0.5Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 30g

 Port Connectors

 1.85mm-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
