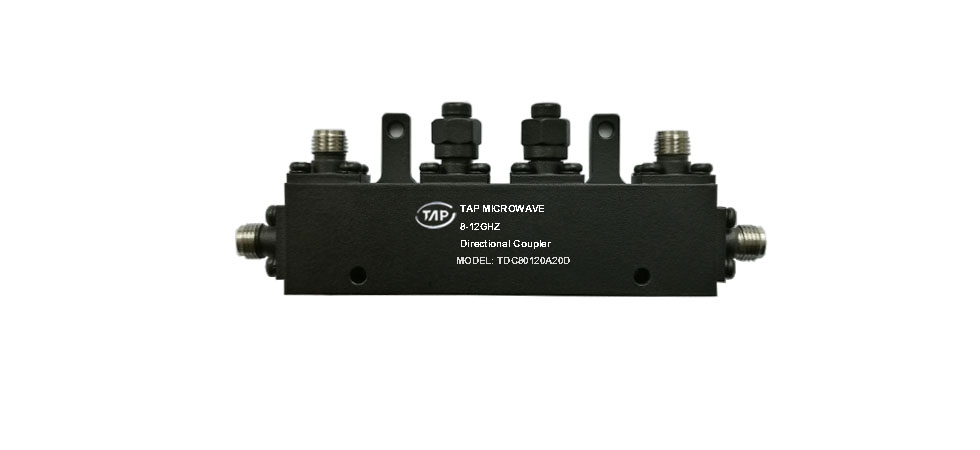

TDC80120A20D 8-12GHz 20dB dual directional coupler

 Technical Data Sheet  Frequency Range  8~12GHz  Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤1.0dB (Excl. Coupling Loss 0.08dB) ...
Product Details
 Technical Data Sheet
 Frequency Range  8~12GHz  Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤1.0dB (Excl. Coupling

Loss 0.08dB)

 Connector Body  Passivated Stainless Steel
 Coupling Factor  ≤20±1dB  Housing  Aluminum, 6061 T6

Clear Chem Conversion Film

 Coupling Sensitivity  ≤±0.7dB  Connector Pin  Beryllium Copper, Gold Plate
 Directivity  ≥20dB  Solder  Lead Free, RoHS Compliant
 VSWR  Primary ≤1.35:1

Secondary ≤1.35:1

 Operating Temperature  -55~+85℃
 1Power Handling  Incident ≤20Watt;

Reflected ≤20Watt

 Operating Humidity  Up to 95%,Non- Condensing
 Impedance  50Ω  Weight
 Port Connectors  SMA-Female
