Product Details
Features
PCS Band Overlay, Low insertion loss

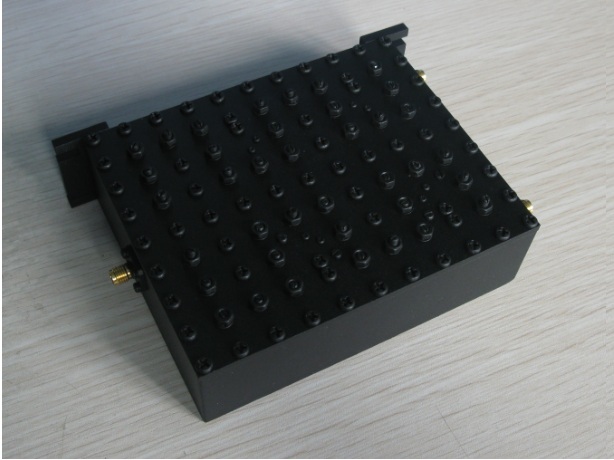

This diplexer not only provides superior isolation between the (PCS) Transmit
and Receive Bands, but also suppresses potential interference from other
transmission sources outside of the PCS band
Electrical specifications
| Parameters | Low | High | |
| Frequency Range | 1850~1910MHz | 1930~1990MHz | |
| F0 Insertion Loss | ≤1.0dB@1880MHz | ≤1.0dB@1960MHz | |
| Max Insertion Loss | ≤1.0dB@60MHz BW | ≤1.0dB@60MHz BW | |
| Ripple | ≤1.0dB@60MHz BW | ||
| Return Loss | ≤-17dB@60MHz BW | ||
| Isolation | ≥90dB@1850-1990MHz | ||
| Rejection | ≥90dB@1930~1990MHz | ≥90dB@1850~1910MHz | |
| Power Handling | CW ≤100Watt; Peak Instantaneous ≤800Watt | ||
| Impedance | 50Ω | ||
| Port Connectors | SMA-Female | ||
| Surface Color | Black | ||
| Wight | 600g | ||
Environmental Parameters
Operating Temperature -25～+65℃
Operating Humidity Up to 90%,Non- Condensing
