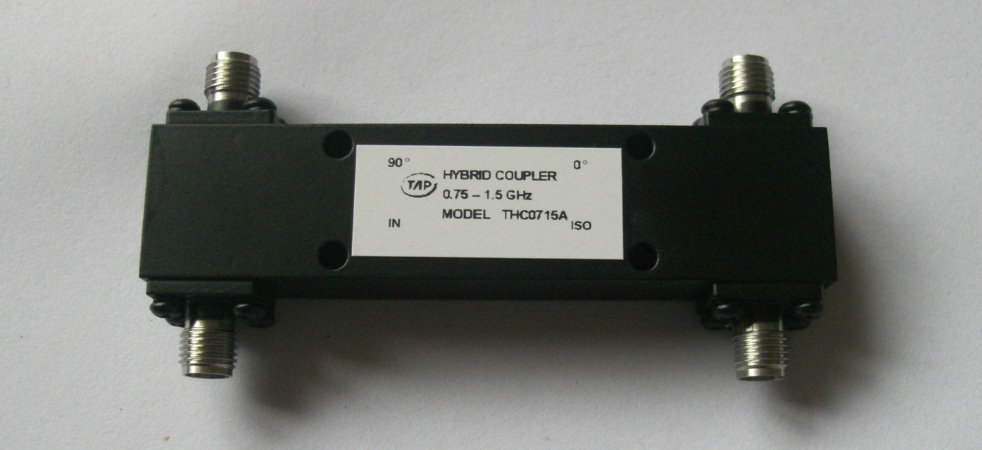

THC0715A 0.75-1.5GHz 90 degree hybrid coupler

Technical Data Sheet
 Frequency Range  0.75~1.5GHz  Finish  Painted Blue_ RAL #5007
 Nominal Split  3.01dB  Connector Body  Passivated Stainless Steel
 Insertion Loss  ≤0.35dB  Housing  Aluminum, 6061 T6

Clear Chem Conversion Film

 Isolation  ≥22dB
 Amplitude Balance  ≤±0.5dB  Connector Pin  Beryllium Copper, Gold Plate
 Phase Balance  ≤±2°  Solder  Lead Free, RoHS Compliant
 VSWR  ≤1.20:1  Operating Temperature  -55~+85℃
 1Power Handling  Average ≤20Watt

Peak ≤1KW

 Operating Humidity  Up to 95%,Non- Condensing
 Impedance  50Ω  Weight  30g
 Port Connectors  SMA-Female
