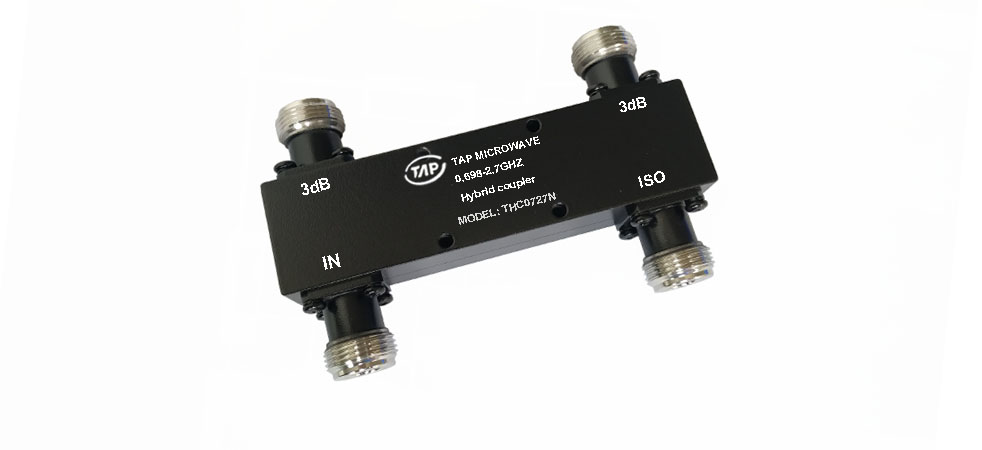

THC0727N 0.698-2.7GHz 3dB 90 degree Hybrid Coupler

Technical Data Sheet  Frequency Range  0.698~2.7GHz    Finish  Painted Blue_ RAL #5007  Nominal Split  3.01dB &nbs ...
Product Details

Technical Data Sheet

 Frequency Range

 0.698~2.7GHz



 Finish

 Painted Blue_ RAL #5007

 Nominal Split

 3.01dB



 Connector Body

Brass, Tri-Alloy Plate

 Insertion Loss

 ≤0.4dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥20dB

 Amplitude Balance

 ≤±0.5dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Phase Balance

 ≤±5°



 Solder

 Lead Free, RoHS Compliant

 VSWR

 ≤1.25:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Average ≤50Watt

 Peak ≤3KW





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 200g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
