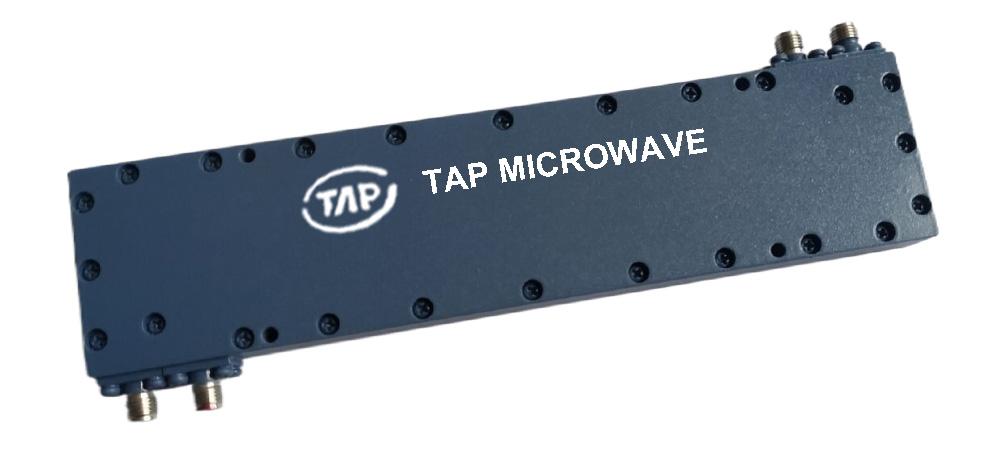

THC10180B 1-18GHz 3dB 180 degree hybrid coupler

Technical Data Sheet  Frequency Range       1~18GHz    Finish  Painted Blue_ RAL #5007  Nominal Split  3.01dB    Connector Body  Passivated Stainle ...
Product Details

Technical Data Sheet

 Frequency Range

 1~18GHz



 Finish

 Painted Blue_ RAL #5007

 Nominal Split

 3.01dB



 Connector Body

 Passivated Stainless Steel

 Insertion Loss

 ≤4.0dB



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥14dB

 Amplitude Balance

 ≤±1.8dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Phase Balance

 ≤±18°



 Solder

 Lead Free, RoHS Compliant

 VSWR

 ≤1.80:1



 Operating Temperature

 -55~+85℃

 1Power Handling

 Average ≤20Watt

 Peak ≤1KW





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 110g

 Port Connectors

 2.92mm-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
