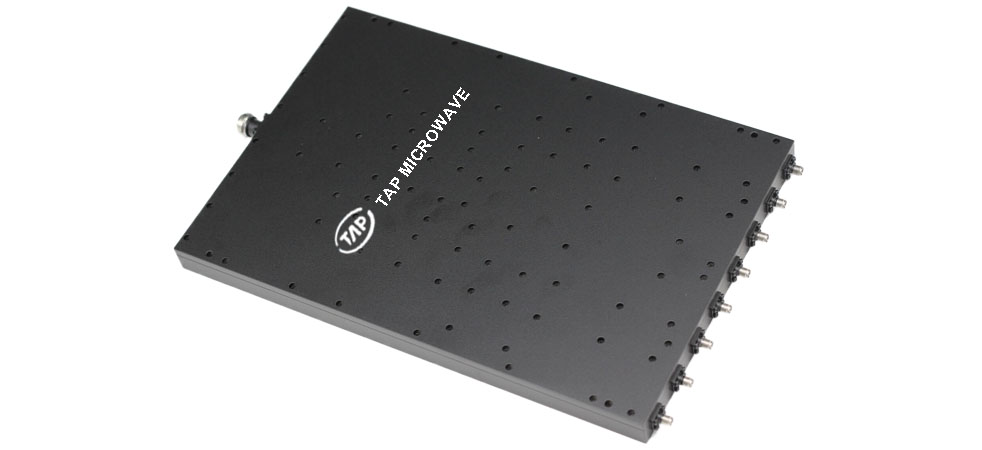

TPD0418N8HA 0.4-1.8GHz 8 way power divider

 Technical Data Sheet  Frequency Range  0.4~1.8GHz    Finish  Natural oxygen  Insertion Loss  ≤1.5dB@0.6-1.8GHz & ...
Product Details

 Technical Data Sheet

 Frequency Range

 0.4~1.8GHz



 Finish

 Natural oxygen

 Insertion Loss

 ≤1.5dB@0.6-1.8GHz

 ≤1.0dB@0.4-0.6GHz

 (Above 9.03dB Split)



 Connector Body

 Brass, Tri-Alloy Plate

 VSWR

 Input   ≤1.60:1

 Output  ≤1.40:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥18dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±0.5dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±5°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤150Watt;

 Reversed ≤10Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight



 Port Connectors

 Input: N-Female

 Output: SMA-Female



 Dimension Of Resistance

 2520

1Power Handling guaranteed when load’s VSWR within 1.50:1.
