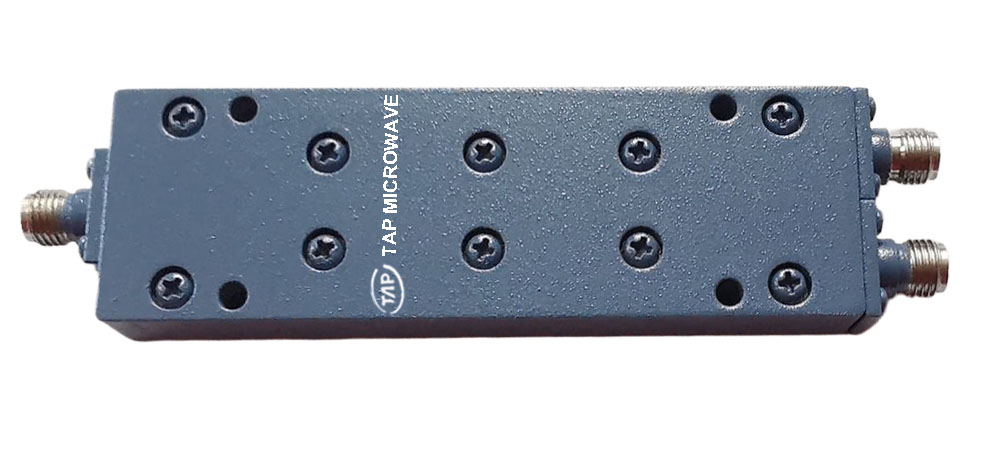

TPD05400A2A 0.5-40GHz 2 way Power Divider

 Technical Data Sheet

 Frequency Range

 0.5~40GHz

 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤3.4dB

 (Above 3.01dB Split)

 Connector Body

 Passivated Stainless Steel

 VSWR

 Input   ≤1.80:1

 Output  ≤1.50:1

 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥8dB@0.5-0.9GHz

≥14dB@0.9-40GHz

 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±0.5dB

 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±5°

 Operating Temperature

 -55～+85℃

 ¹Power Handling

 Forward ≤5Watt;

 Reversed ≤1Watt

 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω

 Weight

 100g

 Port Connectors

 2.92mm-Female
