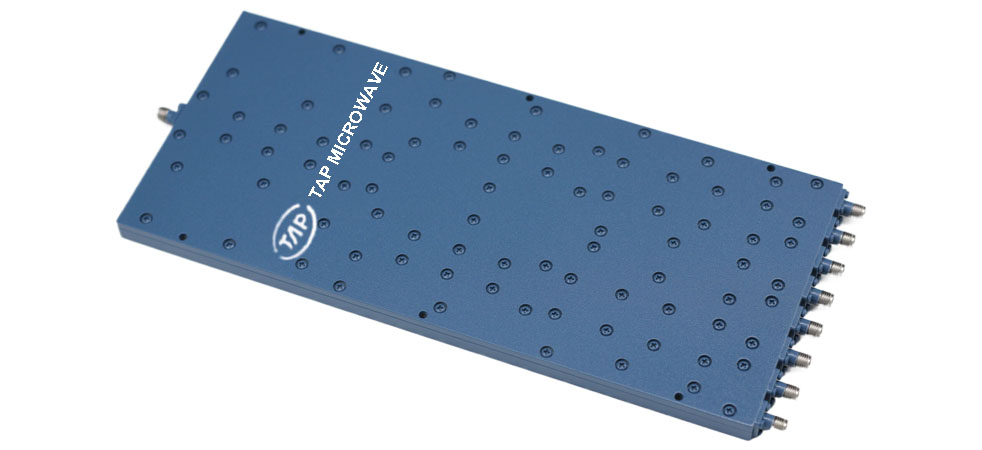

TPD05400A8 0.5-40GHz 8 way power divider

 Technical Data Sheet  Frequency Range  0.5~40GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤11dB  (Ab ...
Product Details

 Technical Data Sheet

 Frequency Range

 0.5~40GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤11dB

 (Above 9.03dB Split)



 Connector Body

 Passivated Stainless Steel

 VSWR

 Input   ≤2.20:1

 Output  ≤1.70:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥7dB@0.5-0.9GHz

≥12dB@0.9-40GHz



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±1.5dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±18°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤5Watt;

 Reversed ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

380g

 Port Connectors

 2.92mm-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
