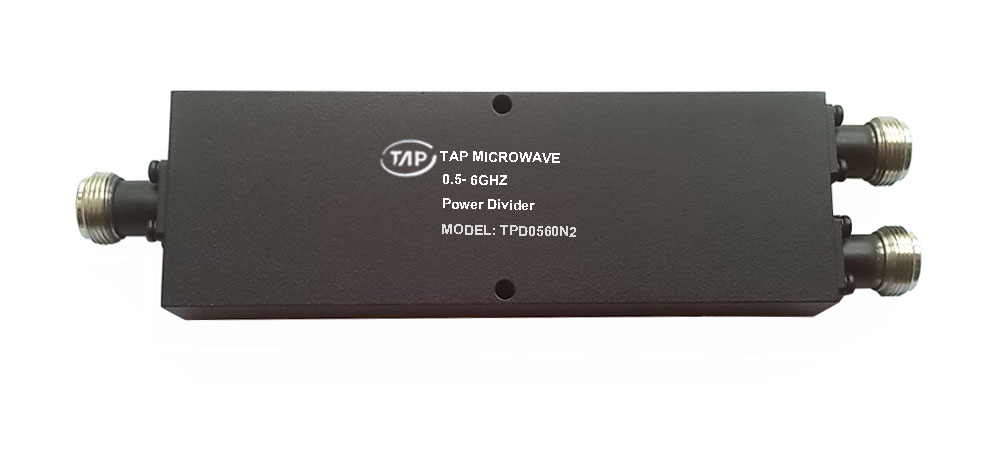

TPD0560N2 0.5-6GHz 2 way power divider

   Technical Data Sheet  Frequency Range  0.5~6.0GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.9dB   (Above 3.01dB Split)    Connector Body  Brass, Tri-All ...
Product Details



 Technical Data Sheet
 Frequency Range  0.5~6.0GHz    Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤0.9dB



(Above 3.01dB Split)

   Connector Body  Brass, Tri-Alloy Plate
 VSWR  Input   ≤1.40:1



Output  ≤1.40:1

   Housing  Aluminum, 6061 T6



Clear Chem Conversion Film

 Isolation  ≥18dB    Connector Pin  Beryllium Copper, Gold Plate
 Amplitude Balance  ≤±0.3dB    Solder  Lead Free, RoHS Compliant
 Phase Balance  ≤±5°    Operating Temperature  -40~+85℃
 1Power Handling  Forward ≤35Watt;



Reversed ≤2Watt

   Operating Humidity  Up to 95%,Non- Condensing
 Impedance  50Ω    Weight
 Port Connectors N-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1.
