TPD065270A2 650-2700MHz 2 way power divider

 Technical Data Sheet  Frequency Range  650~2700MHz  Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.6dB (Above 3.01dB Split)  Connector Body  Passivated Stainless St ...
Product Details

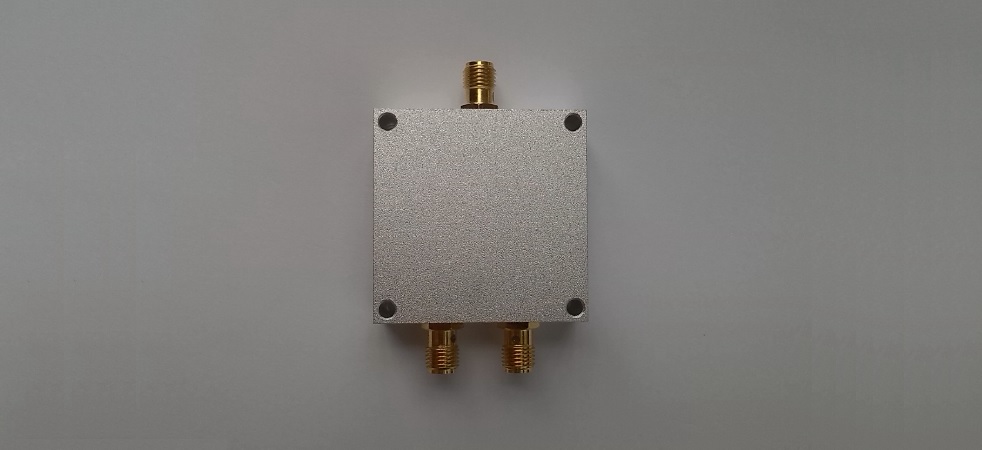

  TPD065270A2 0.65-2.7GHz 2 way power divider

 Technical Data Sheet
 Frequency Range  650~2700MHz  Finish  Painted Blue_ RAL #5007
 Insertion Loss  ≤0.6dB

(Above 3.01dB Split)

 Connector Body  Passivated Stainless Steel
 VSWR  Input   ≤1.25:1

Output  ≤1.25:1

 Housing  Aluminum, 6061 T6

Clear Chem Conversion Film

 Isolation  ≥20dB  Connector Pin  Beryllium Copper, Gold Plate
 Amplitude Balance  ≤0.3dB  Solder  Lead Free, RoHS Compliant
 Phase Balance  ≤3°  Operating Temperature  -40~+70℃
 1Power Handling  Forward ≤30Watt;

Reversed ≤1Watt

 Operating Humidity  Up to 90%,Non- Condensing
 Impedance  50Ω  Weight  30g
 Port Connectors  SMA-Female

1Power Handling guaranteed when load’s VSWR within 1.50:1.
