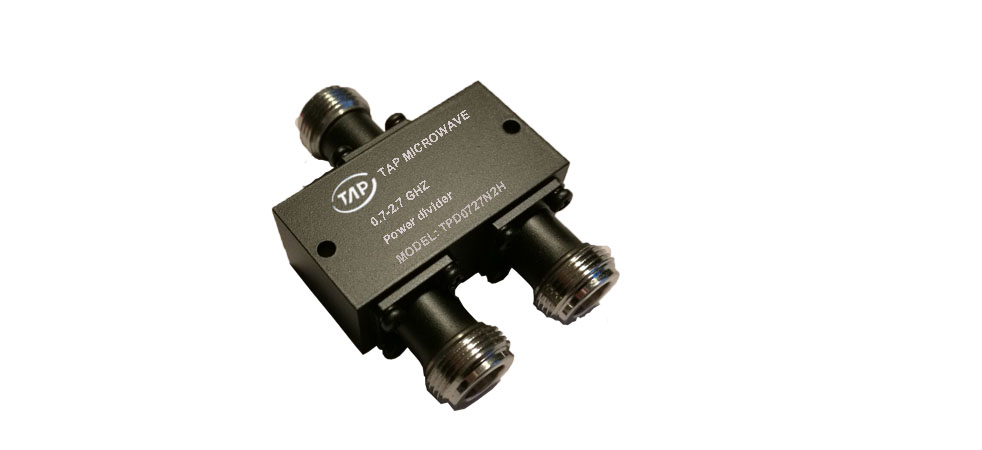

TPD0727N2 0.7-2.7GHz 2 way power divider

 Technical Data Sheet  Frequency Range  0.7~2.7GHz    Finish  Natural oxygen  Insertion Loss  ≤0.6dB  (Above 3.01dB Split)        Connector Body  Br ...
Product Details

 Technical Data Sheet

 Frequency Range

 0.7~2.7GHz



 Finish

 Natural oxygen

 Insertion Loss

 ≤0.6dB

 (Above 3.01dB Split)



 Connector Body

 Brass, Tri-Alloy Plate

 VSWR

 Input   ≤1.25:1

 Output  ≤1.25:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥20dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±0.3dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±3°



 Operating Temperature

 -40~+65℃

 1Power Handling

Forward ≤100Watt;

 Rev. ≤20Watt Per Port





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 160g

 Port Connectors

 N-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
