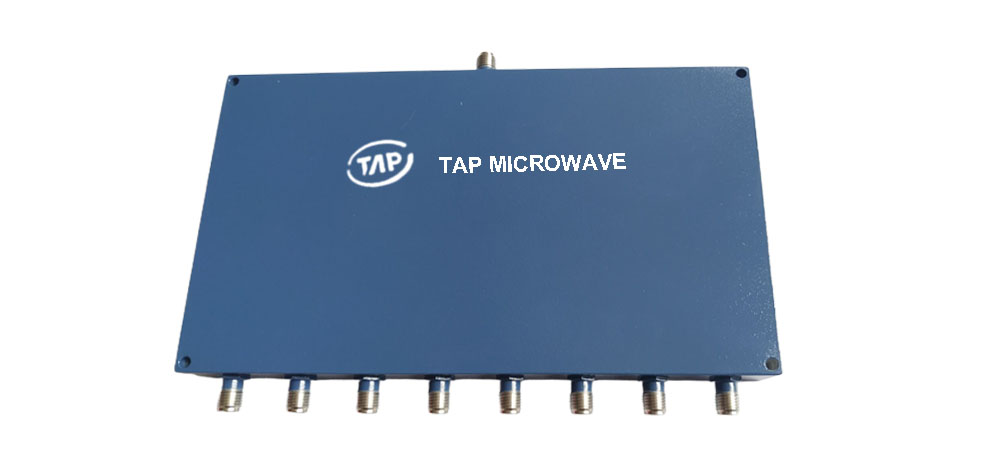

Product Details
|
Technical Data Sheet |
||||
|
Frequency Range |
0.8~4.5GHz |
|
Finish |
Painted Blue_ RAL #5007 |
|
Insertion Loss |
≤2.0dB (Above 9.03dB Split) |
|
Connector Body |
Brass, Tri-Alloy Plate |
|
VSWR |
Input ≤1.50:1 Output ≤1.30:1 |
|
Housing |
Aluminum, 6061 T6 Clear Chem Conversion Film |
|
Isolation |
≥18dB |
|
Connector Pin |
Beryllium Copper, Gold Plate |
|
Amplitude Balance |
≤±0.5dB |
|
Solder |
Lead Free, RoHS Compliant |
|
Phase Balance |
≤±5° |
|
Operating Temperature |
-55～+85℃ |
|
1Power Handling |
Forward ≤30Watt; Reversed ≤2Watt |
|
Operating Humidity |
Up to 95%,Non- Condensing |
|
Impedance |
50Ω |
|
Weight |
490g |
|
Port Connectors |
SMA-Female |
|
|
|
1Power Handling guaranteed when load’s VSWR within 1.50:1.
