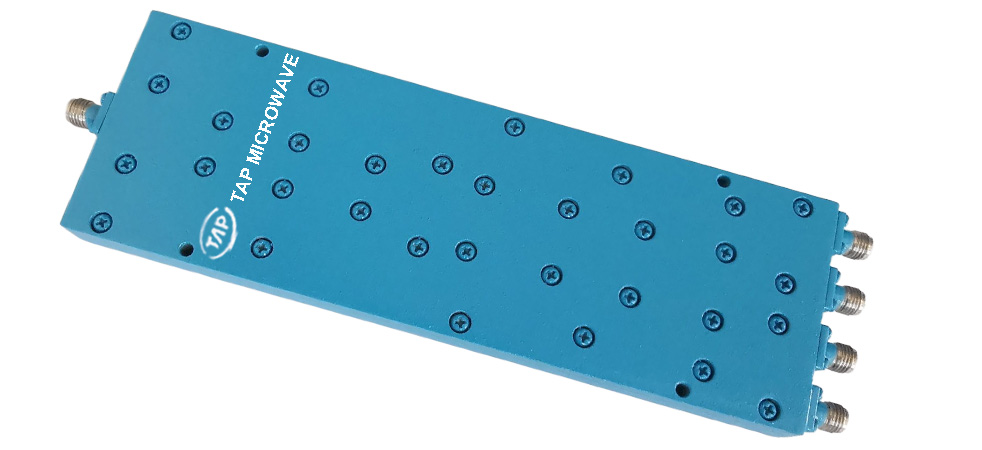

TPD10400A4A 1-40GHz 4 way power divider

 Technical Data Sheet  Frequency Range  1~40GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤6.8dB  (Above 6.02dB Split)         Connector Bo ...
Product Details

 Technical Data Sheet

 Frequency Range

 1~40GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤6.8dB

 (Above 6.02dB Split)



 Connector Body

 Passivated Stainless Steel

 VSWR

 Input   ≤1.70:1

 Output  ≤1.60:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥14dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±1.0dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±6°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤10Watt;

 Reversed ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 220g

 Port Connectors

 2.92mm-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
