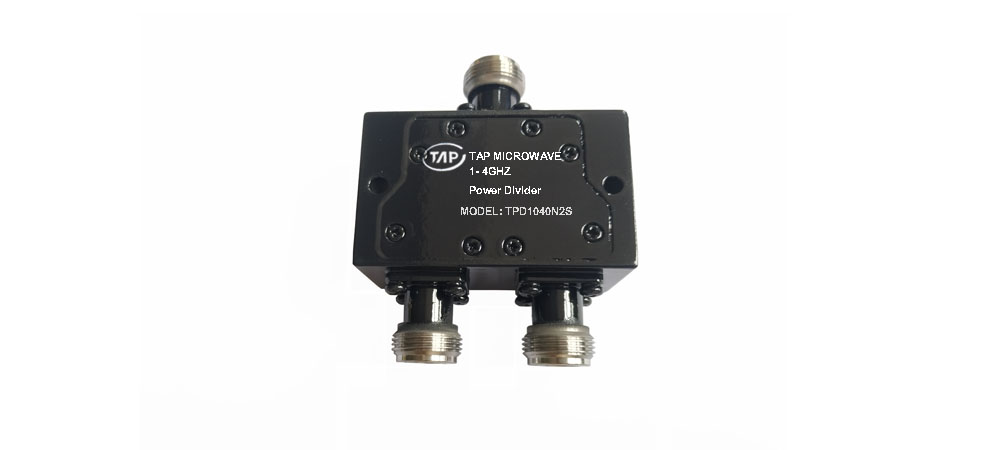

TPD1040N2S 1-4GHz 2 way Power Divider

 Technical Data Sheet  Frequency Range  1~4GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤0.7dB  (Above 3.01dB Split)         Connector Bod ...
Product Details

 Technical Data Sheet

 Frequency Range

 1~4GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤0.7dB

 (Above 3.01dB Split)



 Connector Body

 Passivated Stainless Steel

 VSWR

 Input   ≤1.30:1

 Output  ≤1.30:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥18dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±0.3dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±3°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤30Watt;

 Reversed ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Waterproof specs

 IP65

 Port Connectors

 N-Female



 Correspondence for salt damage

 Performance guarantee in salt spray test

1Power Handling guaranteed when load’s VSWR within 1.50:1.
