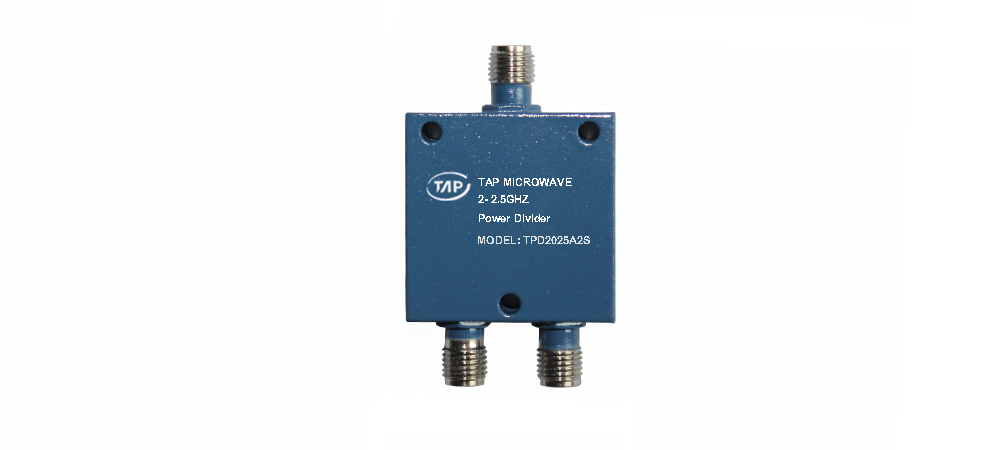

Product Details
|
Technical Data Sheet |
||||
|
Frequency Range |
2~2.5GHz |
|
Finish |
Alodine coating |
|
Insertion Loss |
≤0.3dB (Above 3.01dB Split) |
|
Connector Body |
Brass, Tri-Alloy Plate |
|
VSWR |
Input ≤1.25:1 Output ≤1.20:1 |
|
Housing |
Aluminum, 6061 T6 Clear Chem Conversion Film |
|
Isolation |
≥25dB |
|
Connector Pin |
Beryllium Copper, Gold Plate |
|
Amplitude Balance |
≤±0.2dB |
|
Solder |
Lead Free, RoHS Compliant |
|
Phase Balance |
≤±2° |
|
Operating Temperature |
-55～+85℃ |
|
1Power Handling |
Forward ≤10Watt; Reversed ≤5Watt |
|
Operating Humidity |
Up to 95%,Non- Condensing |
|
Impedance |
50Ω |
|
Weight |
20g |
|
Port Connectors |
SMA-Female |
|
Remark |
Φ1mm hole in cover |
1Power Handling guaranteed when load’s VSWR within 1.50:1.
