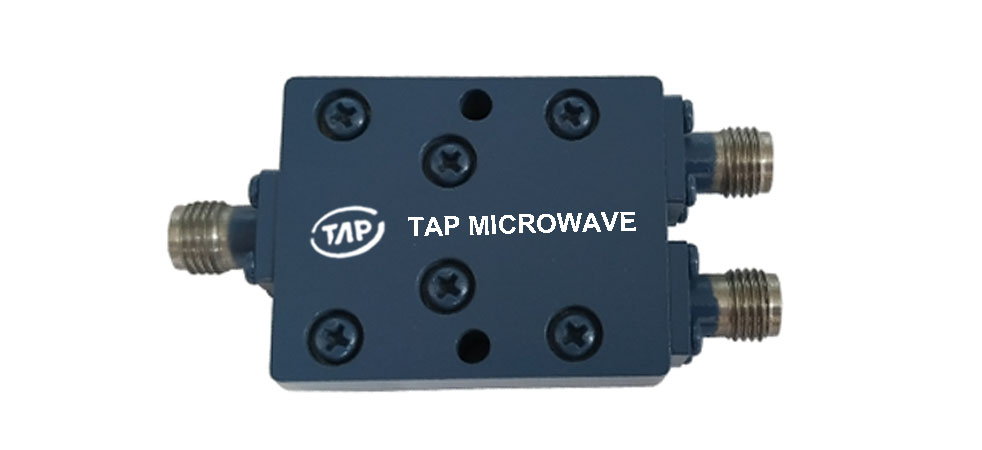

TPD20500A2 2-50GHz 2 way power divider

 Technical Data Sheet  Frequency Range  2~50GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤2.5dB  (Above 3.01dB Split)         Connector Bo ...
Product Details

 Technical Data Sheet

 Frequency Range

 2~50GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤2.5dB

 (Above 3.01dB Split)



 Connector Body

 Passivated Stainless Steel

 VSWR

 Input   ≤1.80:1

 Output  ≤1.80:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥12dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤±1.0dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±10°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤10Watt;

 Reversed ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 30g

 Port Connectors

 2.4mm-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
