Product Details

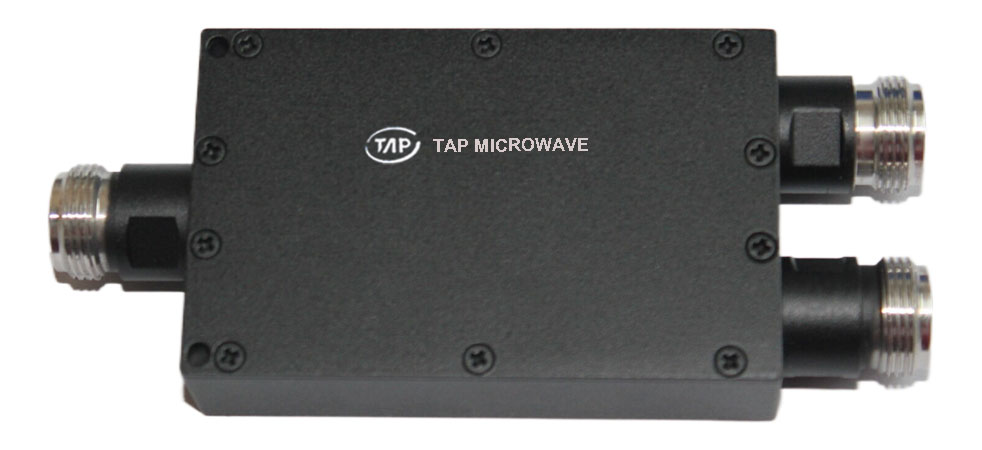

![](https://www.tapmicrowave.com/wp-content/uploads/2024/07/TPD2458N2C-2.4-5.8GHz-2-way-power-combiner.jpg)
Technical Data Sheet |
||||
Frequency Range |
2.4~5.8GHz |
|
Finish |
Painted Blue_ RAL #5007 |
Insertion Loss |
≤0.7dB (Above 3.01dB Split) |
|
Connector Body |
Brass, Tri-Alloy Plate |
VSWR |
Input ≤1.30:1 Output ≤1.30:1 |
|
Housing |
Aluminum, 6061 T6 Clear Chem Conversion Film |
Isolation |
≥18dB |
|
Connector Pin |
Beryllium Copper, Gold Plate |
Amplitude Balance |
≤±0.2dB |
|
Solder |
Lead Free, RoHS Compliant |
Phase Balance |
≤±2° |
|
Operating Temperature |
-55~+85℃ |
1Power Handling |
≤30Watt |
|
Operating Humidity |
Up to 95%,Non- Condensing |
Impedance |
50Ω |
|
Weight |
110g |
Port Connectors |
N-Female |
|
|
|
1Power Handling guaranteed when load’s VSWR within 1.50:1.
