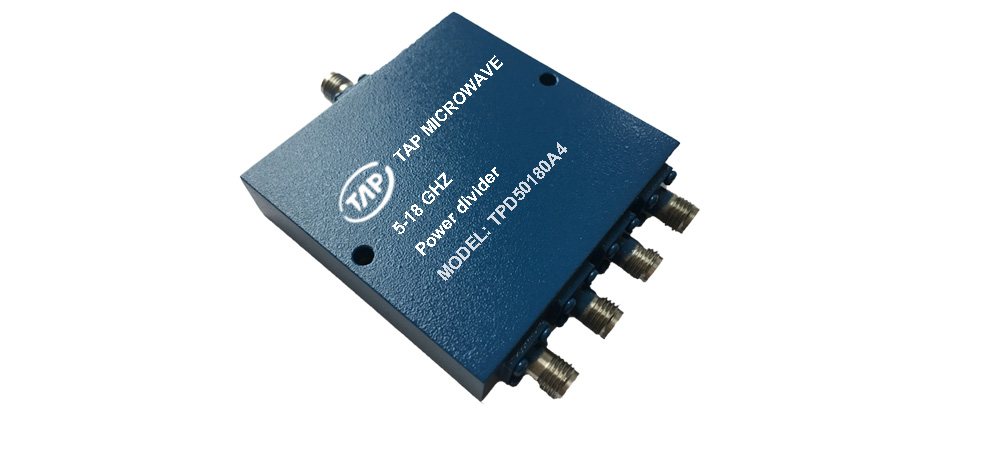

TPD50180A4 5-18GHz 4 way Power Divider

 Technical Data Sheet  Frequency Range  5~18GHz    Finish  Painted Blue_ RAL #5007  Insertion Loss  ≤1.8dB  (Above 6.02dB Split)         Connector Bo ...
Product Details

 Technical Data Sheet

 Frequency Range

 5~18GHz



 Finish

 Painted Blue_ RAL #5007

 Insertion Loss

 ≤1.8dB

 (Above 6.02dB Split)



 Connector Body

 Passivated Stainless Steel

 VSWR

 Input   ≤1.50:1

 Output  ≤1.40:1



 Housing

 Aluminum, 6061 T6

 Clear Chem Conversion Film

 Isolation

 ≥17dB



 Connector Pin

 Beryllium Copper, Gold Plate

 Amplitude Balance

 ≤0.4dB



 Solder

 Lead Free, RoHS Compliant

 Phase Balance

 ≤±5°



 Operating Temperature

 -55~+85℃

 1Power Handling

 Forward ≤30Watt;

 Reversed ≤1Watt





 Operating Humidity

 Up to 95%,Non- Condensing

 Impedance

 50Ω



 Weight

 110g

 Port Connectors

 SMA-Female







1Power Handling guaranteed when load’s VSWR within 1.50:1.
