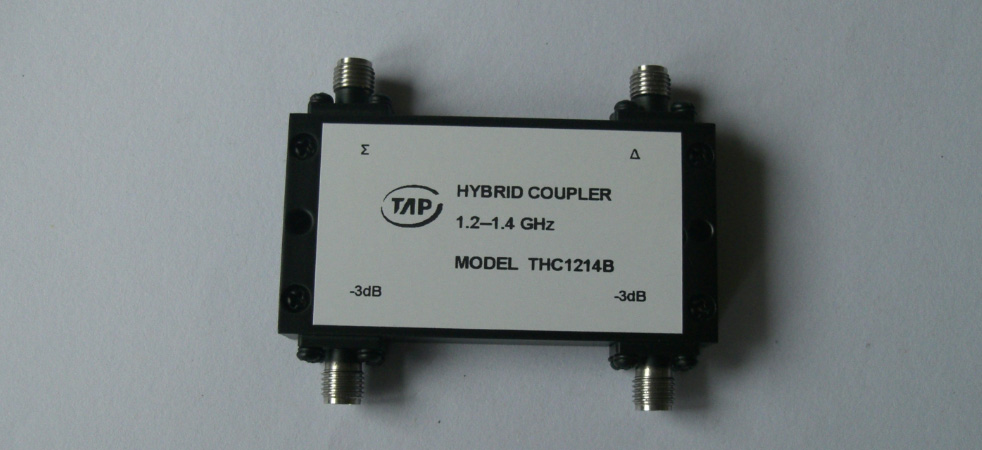

THC1214B 1.2-1.4GHz 180 degree hybrid coupler
| Technical Data Sheet | ||||
| Frequency Range | 1.2~1.4GHz | Finish | Painted Blue_ RAL #5007 | |
| Nominal Split | 3.01dB | Connector Body | Passivated Stainless Steel | |
| Insertion Loss | ≤0.3dB | Housing | Aluminum, 6061 T6
Clear Chem Conversion Film |
|
| Isolation | ≥24dB | |||
| Amplitude Balance | ≤±0.2dB | Connector Pin | Beryllium Copper, Gold Plate | |
| Phase Balance | ≤±2° | Solder | Lead Free, RoHS Compliant | |
| VSWR | ≤1.20:1 | Operating Temperature | -55～+85℃ | |
| 1Power Handling | Average ≤50Watt
Peak ≤1KW |
Operating Humidity | Up to 95%,Non- Condensing | |
| Impedance | 50Ω | Weight | 60g | |
| Port Connectors | SMA-Female | |||
