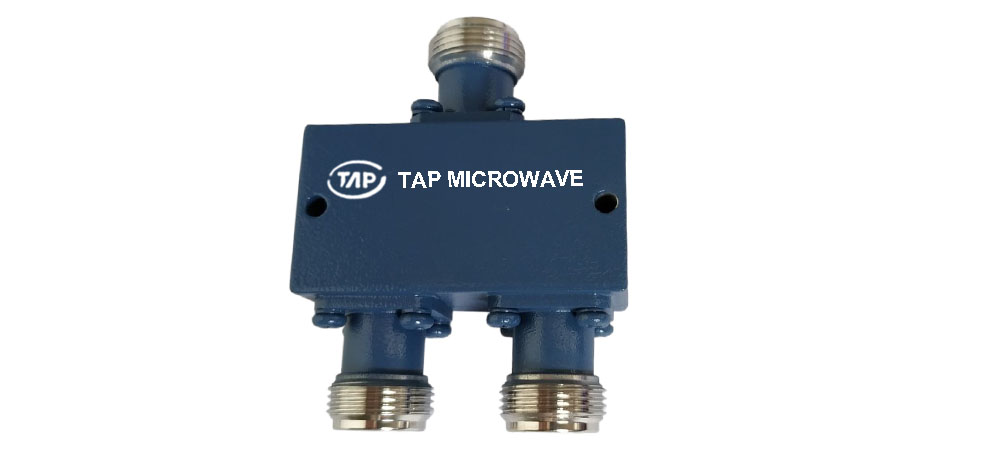

Product Details
| Technical Data Sheet | ||||
| Frequency Range | 3~6GHz | Finish | Painted Blue_ RAL #5007 | |
| Insertion Loss | ≤0.8dB (Above 3.01dB Split) | Connector Body | Brass, Tri-Alloy Plate | |
| VSWR | Input ≤1.40:1 Output ≤1.30:1 | Housing | Aluminum, 6061 T6 Clear Chem Conversion Film | |
| Isolation | ≥20dB | Connector Pin | Beryllium Copper, Gold Plate | |
| Amplitude Balance | ≤±0.2dB | Solder | Lead Free, RoHS Compliant | |
| Phase Balance | ≤±2° | Operating Temperature | -55～+85℃ | |
| 1Power Handling | Forward ≤30Watt; Reversed ≤1Watt | Operating Humidity | Up to 95%,Non- Condensing | |
| Impedance | 50Ω | Weight | 120g | |
| Port Connectors | N-Female |
1Power Handling guaranteed when load’s VSWR within 1.50:1.
